HYD NGO ELECTRICAL STEEL
Category:
Product
Size: 0.35mm/0.50mm/0.65mm, customized width 10-1250mm.
|
Grade |
Nominal Thickness(mm) |
Density(kg/dm3) |
Core Loss P1.5/50 (W/Kg) |
Magnetic Induction B50 (T) |
|
35/210 |
0.35 |
7.60 |
2.10 |
1.62 |
|
35/230 |
7.60 |
2.30 |
1.62 |
|
|
35/250 |
7.60 |
2.50 |
1.62 |
|
|
35/270 |
7.65 |
2.70 |
1.62 |
|
|
35/300 |
7.65 |
3.00 |
1.62 |
|
|
35/360 |
7.65 |
3.60 |
1.63 |
|
|
35/440 |
7.70 |
4.40 |
1.64 |
|
|
35/550 |
7.75 |
5.50 |
1.64 |
|
|
50/230 |
0.50 |
7.60 |
2.30 |
1.62 |
|
50/250 |
7.60 |
2.50 |
1.62 |
|
|
50/270 |
7.60 |
2.70 |
1.62 |
|
|
50/290 |
7.60 |
2.90 |
1.62 |
|
|
50/310 |
7.65 |
3.10 |
1.62 |
|
|
50/350 |
7.65 |
3.50 |
1.62 |
|
|
50/400 |
7.65 |
4.00 |
1.63 |
|
|
50/470 |
7.70 |
4.70 |
1.64 |
|
|
50/600 |
7.75 |
6.00 |
1.66 |
|
|
50/700 |
7.80 |
7.00 |
1.70 |
|
|
50/800 |
7.80 |
8.00 |
1.70 |
|
|
50/1000 |
7.85 |
10.00 |
1.70 |
|
|
50/1300 |
7.85 |
13.00 |
1.70 |
|
|
65/470 |
0.65 |
7.65 |
4.70 |
1.64 |
|
65/600 |
7.75 |
6.00 |
1.64 |
|
|
65/700 |
7.75 |
7.00 |
1.65 |
|
|
65/800 |
7.80 |
8.00 |
1.69 |
|
|
65/1000 |
7.80 |
10.00 |
1.69 |
|
|
65/1300 |
7.85 |
13.00 |
1.69 |
Product Features:
|
Product Series |
Main Features |
|
General Series |
Similar excellent product performance with the products of foreign and domestic leading electrical steel companies |
|
High Efficient Series |
Lower core loss and higher magnetic induction than conventional product |
|
Stress Relief Annealing Series |
Low core loss, high magnetic induction and good machinability after annealing |
|
New Energy Vehicle Series |
Excellent electromagentic performance under high frequency |
Product Applications:

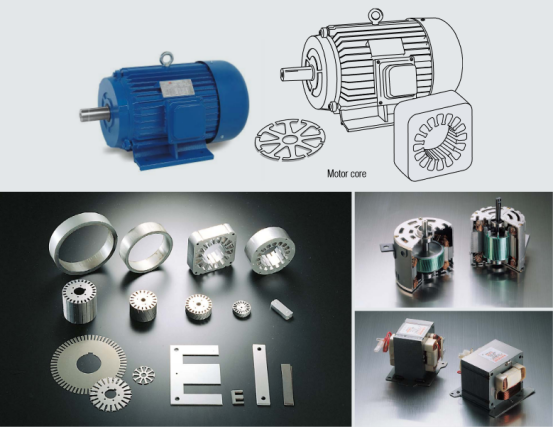

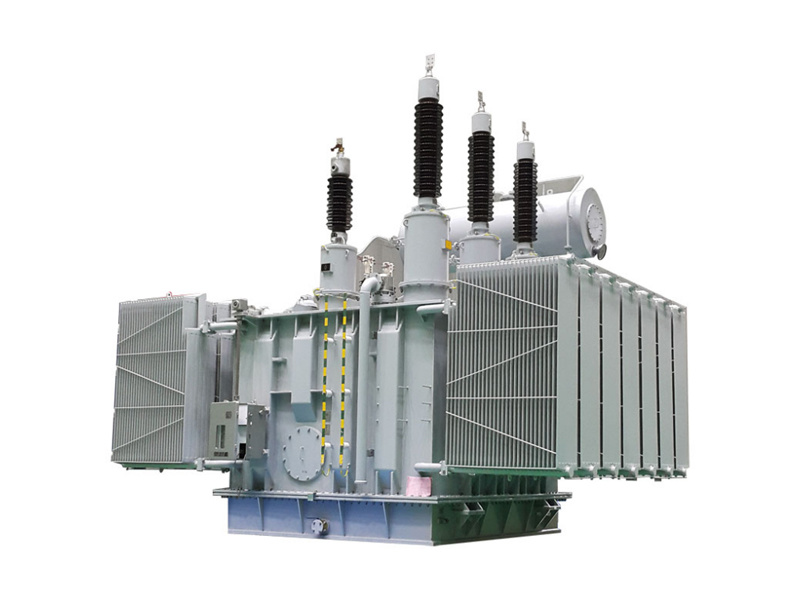

Application: Large motors, Medium motors, Compressor motors, Motor for electri vehicle, General motors, Small precision motor, Audiofrequency transformer, Small power transformer, Ballast resistor, Voltage regulator, Magnetic sealing device, Magnetic accelerator.
